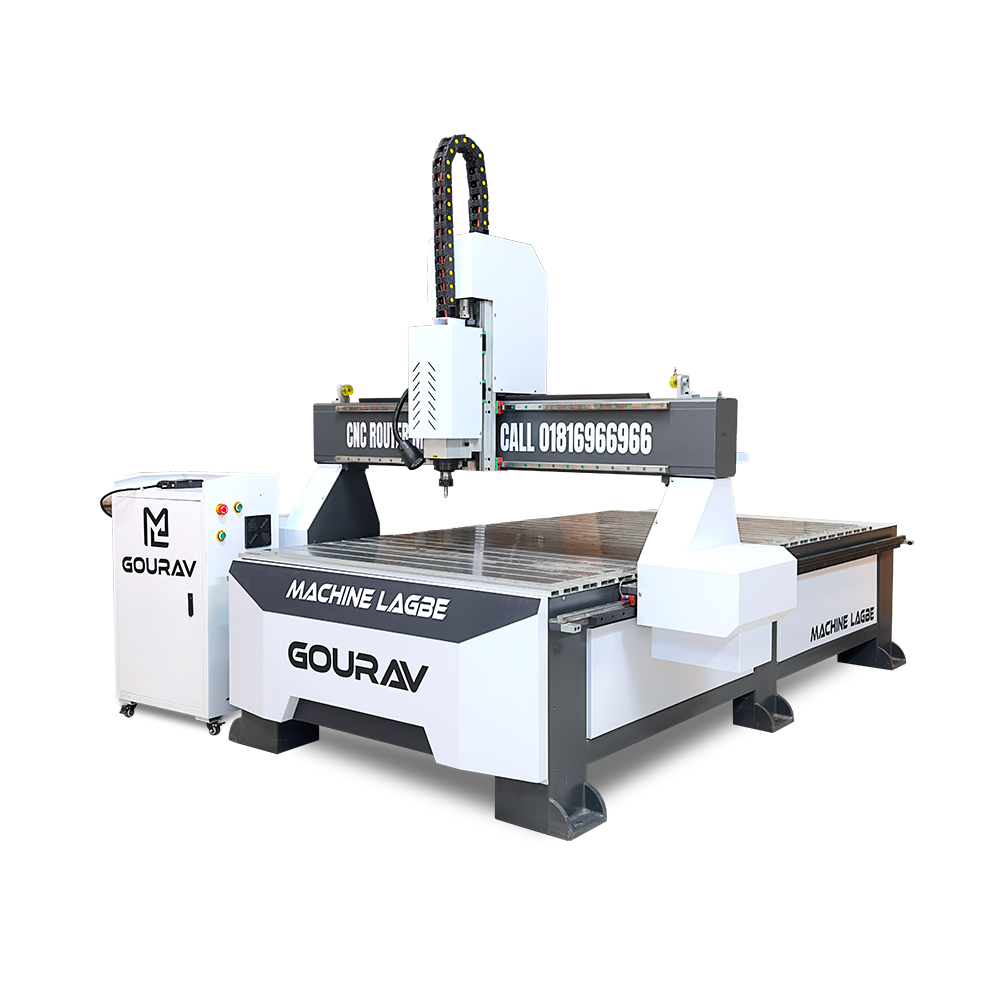

Read moreDesign: T-Slot Working Table
Working Table: T-Slot Aluminum Table + White Pvc
Control System: DSP NK105/ NC Studio
Inverter: 7.5 KW Inverter
Spindle: 6 KW air cooled Spindle
Spindle Speed: 24000 rpm
X, Y Axis: 25mm Linear Guidway And Block 1.25m Helical Rack and Pinion
Z Axis: TBI Ball Screw, Connection As Coupling Type
X,Y,Z Axis Motor: Delta AC Servo Motor
X,Y, Z Axis Driving System: Delta AC Servo Drive
Traveling Size: 2500*1300*300 mm
Sensor: Omron, Japan
Manual Lubrication: Manual
Dust Collector: 2.2 Kw Dust Collector
Voltage: AC 220v, 01 PH, 50hz -

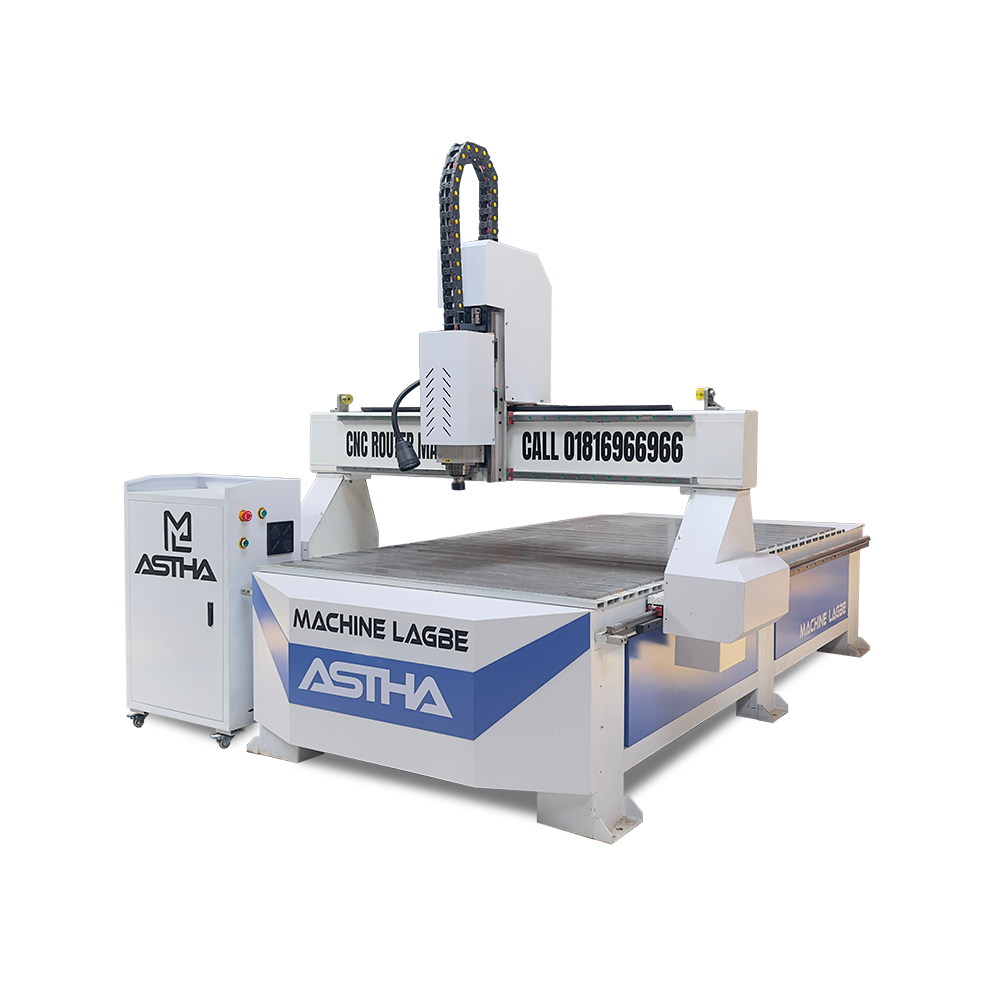

Read moreSPECIFICATION
Design: T-Slot Working Table
Working Table: T-Slot Aluminum Table + White Pvc
Control System: DSP NK105/ NC Studio
Inverter: 7.5 KW Inverter
Spindle: 6 KW air cooled Spindle
Spindle Speed: 24000 rpm
X, Y Axis: 25mm Linear Guidway And Block 1.25m Helical Rack and Pinion
Z Axis: TBI Ball Screw, Connection As Coupling Type
X,Y,Z Axis Motor: Servo Motor
X,Y, Z Axis Driving System: Servo Drive
Traveling Size: 2500*1300*300 mm
Sensor: Omron, Japan
Manual Lubrication: Manual
Dust Collector: 2.2 Kw Dust Collector
Voltage: AC 220v, 01 PH, 50hz -
Read moreSPECIFICATION
Design: T-Slot Working Table
Working Table: T-Slot Aluminum Table + White Pvc
Control System: DSP Richauto A11E/ NC Studio
Inverter: 5.5 KW Inverter
Spindle: 4.0 KW air cooled Spindle
Spindle Speed: 18000 rpm
X, Y Axis: 20mm Linear Guidway And Block 1.25m Helical Rack and Pinion
Z Axis: TBI Ball Screw, Connection As Coupling Type
X,Y Axis Motor: Stepper Motor
X,Y Axis Driving System: Stepper Drive
X,Y Axis Driving & Motor System: Servo Drive & Motor
Traveling Size: 2500*1300*300 mm
Sensor: Omron, Japan
Manual Lubrication: Manual
Dust Collector: 2.2 Kw Dust Collector
Voltage: AC 220v, 01 PH, 50hz -
Read moreSpecification:
Dimension Of Sliding Table: 3200*1250 mm
Cross Cut Capacity: 3200 mm
Max. Cutting Width: 1250 mm
Saw Blade Diameter: 300 mm
Max. Cutting Height At 90°: 80 mm
Max. Cutting Height At 45°: 55 mm
Main Saw Spindle Speed: 4000/6000 rpm
Main Spindle Dia: 30 mm
Tilting Saw Blade: 0-45°
Main Motor: 4.0 KW
Scoring Saw Blade Dia: 120 mm
Scoring Saw Blade Speed: 8000 rpm
Scoring Spindle Diameter: 20 mm
Scoring Motor: 0.75 kw -
Read moreSpecification:
Working Table Size : 950*750mm
Mini Radius Of Banding: 20mm
Heating Power : 1.8kw
Feeding Power: 0.2kw(0.18kw)
Total Power: 2kw
Air Pressure: 0.4-0.5Mpa
Speed Adjustment: Step less speed
Feeding Speed: 1-15m/min
Counting Form: Counter
Application Range: flexion melamine paper/veneer/plastic
Edge Thickness: 0.3-3mm
Edge Width: 8-50mm
Shape Of Working: straight, curved
Machine Size: 1000*830*1000mm -
Read moreSpecification:
Max. drilling diameter: Dia-35mm ( single boring) Dia. 13mm (multi boring)
Max. drilling depth: 60mm
Total Spindle Qty: 21 x 3 pcs
Collect Dia: ⌀ 10 mm
Max. Center Distance Between holes: 1800 x 672 mm
Min. Center Distance Between holes: 130 x 32 mm
Spindle Speed: 2840 rpm
Motor Power: 4.5 kw
